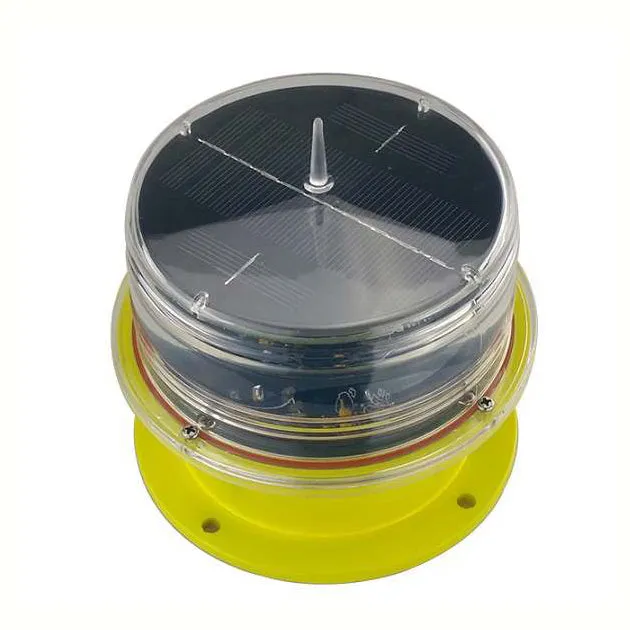

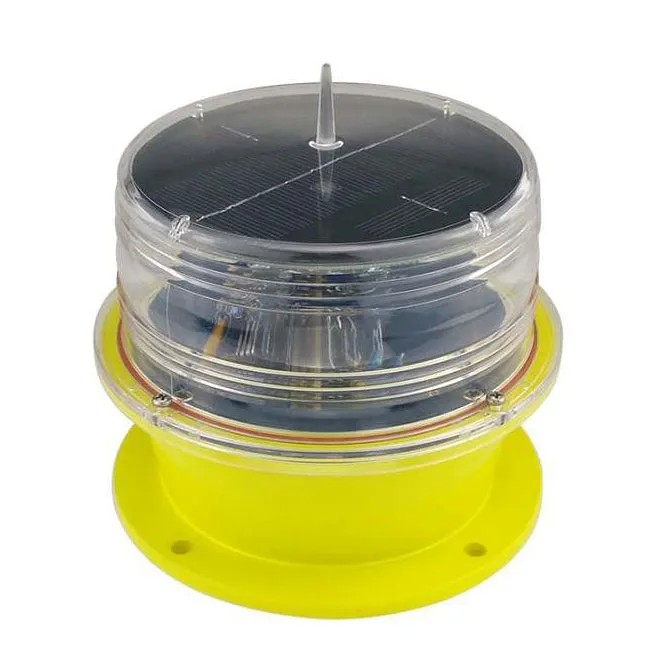

This LED Marine Lanterns is completely self-contained lantern, adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.
It is full-sealed structure ensure(IP68) no water go inside. There is a ON/OFF button under base make local control easier.
Compliance IALA E-200-1
|
SPECIFICATIONS |
JW-LS/C LED Solar Powered Marine Lanterns |
|
Light Characteristics |
|
|
Light Source |
LED |
|
Available Colors |
Red, Green, Yellow, White, Blue |
|
Visible Range(NM) |
1-3 ([email protected]) |
|
Horizontal Output(degrees) |
360 |
|
Vertical Divergence(degrees) |
7 |
|
Flash Characteristics |
Adjustable Steady/Flash mode |
|
Operation Mode |
Dusk-to-dawn Automatically (Built-in photocell) |
|
LED Life Experience(hours) |
>100,000 |
|
Electrical Characteristics |
|
|
Operating Voltage |
3.7Vdc |
|
Circuit Protection |
Integrated |
|
Solar Characteristics |
|
|
Solar Module Type |
Mono-crystalline Silicon |
|
Output(watts) |
1.8 |
|
Charging Regulation |
Microprocessor controlled |
|
Battery Characteristics |
|
|
Battery type |
Lithium ion battery |
|
Nominal Voltage (V) |
3.7 |
|
Battery Service Life |
Average 3 years |
|
Autonomy (hours) |
Steady: 60 Flashing: 150 |
|
Physical Characteristics |
|
|
Body Material |
UV protected Polycarbonate |
|
Base Material |
Powder-coated Die-casting aluminum |
|

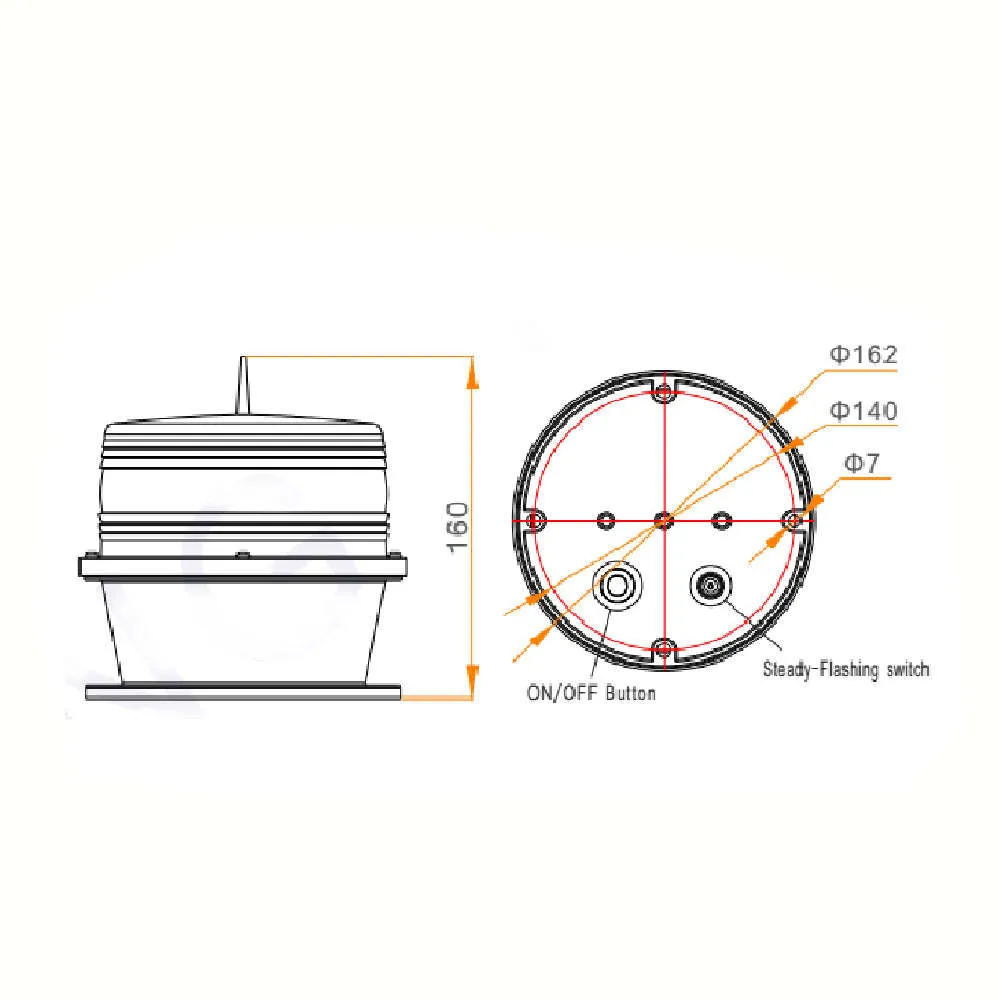

Mounting(mm) |
140×140×Φ7
|
|
Dimension(mm) |
162×162×160 |
|
Weight(kg) |
1 |
|
Product Life Expectancy |
Average 5 years |
|
Environmental Factors |
|
|
Humidity |
0~100% |
|
Wind Speed |
80m/s |
|
Waterproof |
IP68 |
|
Compliance |
|
|
IALA |
Signal colors complying to IALA E-200-1 |
|
Options Available |
|
|
|
Charging port |
|
|
Flashing rate |
|
|
Bluetooth remote control IALA 256 flashes |
|
|
Photocell switch |
Electrical
- Based on LED technology, and its color complies to IALA Recommendations E-200-1.
- LED technology reduces maintenance time & costs
Physical
- Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
- PC housing,UV resistance, shockproof and corrosion proof.
- Bird deterrent spike
- Powder coated die casting aluminum base
- Built-in mono-crystalline silicon solar panel, conversion efficiency is better than poly-crystalline silicon
System design
- Built-in photocell for day/night operation(dusk to dawn operation)
- User-adjustable working mode between steady&flashing(20fpm)
- ON/OFF button interface located under base
Optional
- User-adjustable operation mode to toggle between dusk-till-dawn & 24hr operation
- External charger
- Flashing rate optional
- Bluetooth remote control
Infrared Programmer User Manual
Usage/Application:
-
JW-LS-C Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
