Specifications

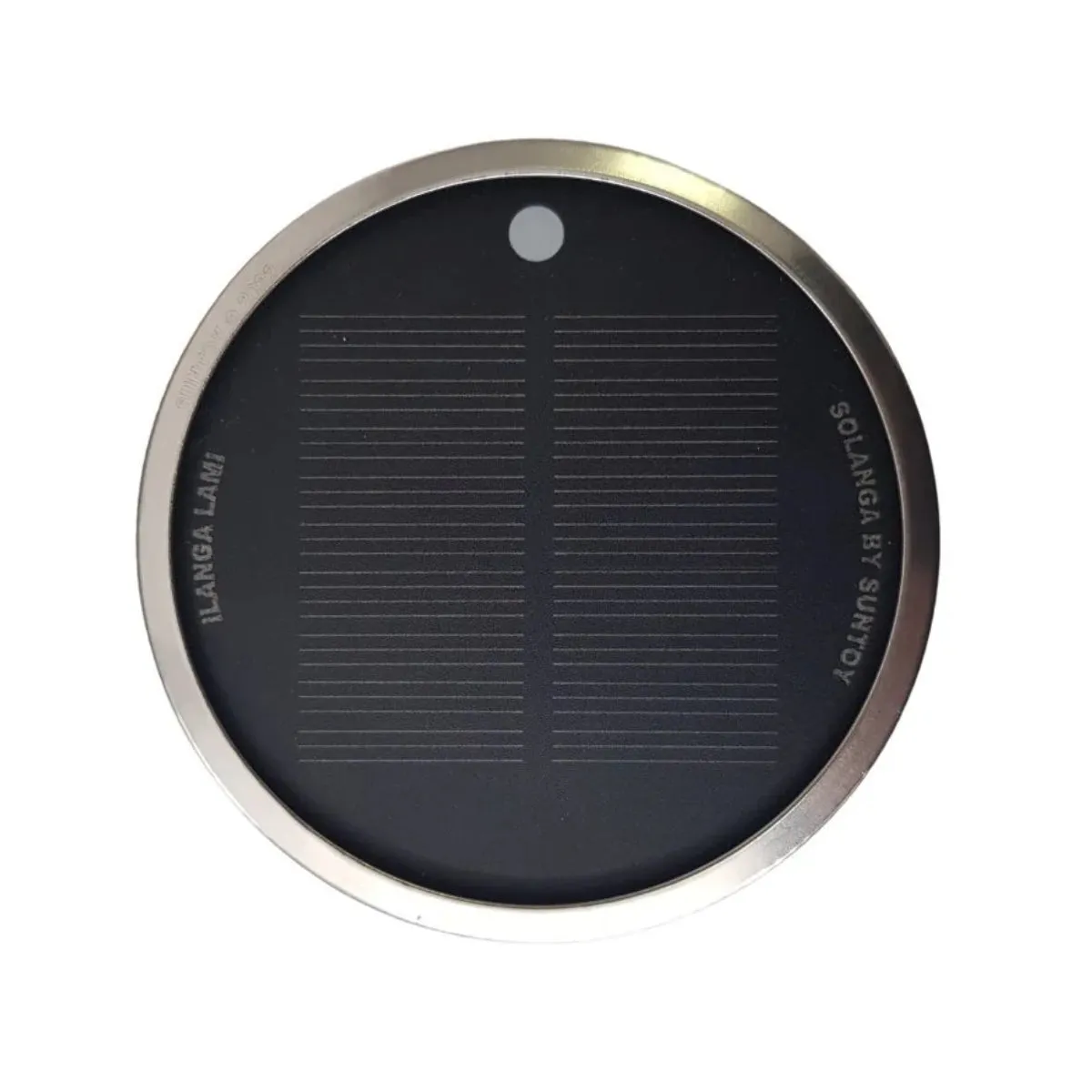

- 1 x circular solar PV panel, *3V 135mA
- 2 x 1.2V 600mAh AAA NiMh batteries

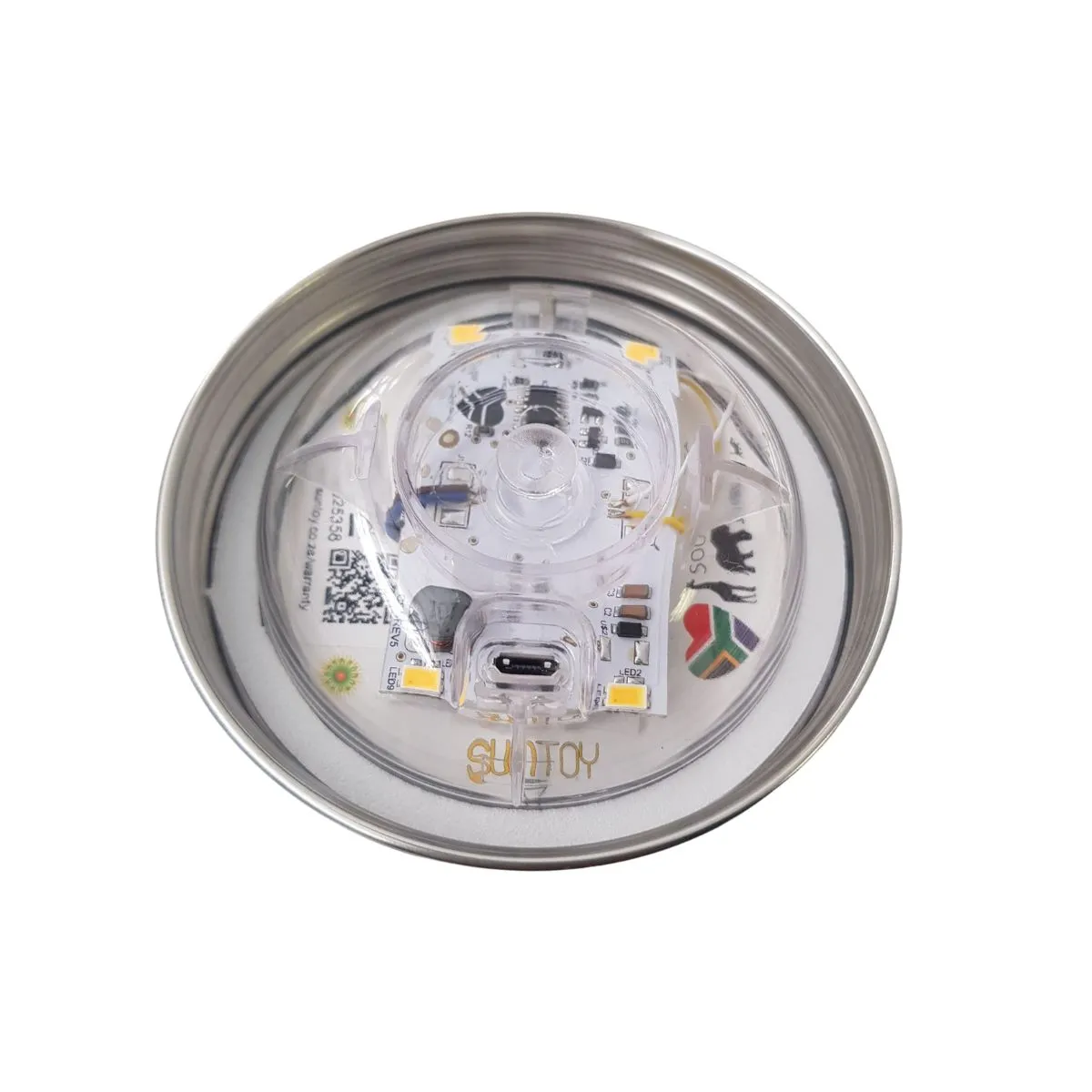

- 4 x high-bright LEDs Fitted onto PC board and LED board, which fits into the lid of the 1litre glass jar.
- Rubber seal ensures no moisture or liquid can enter the bottle (lid adequately screwed onto bottle r Jar)
- Unique magnetic switch: no moving parts = no wear and tear

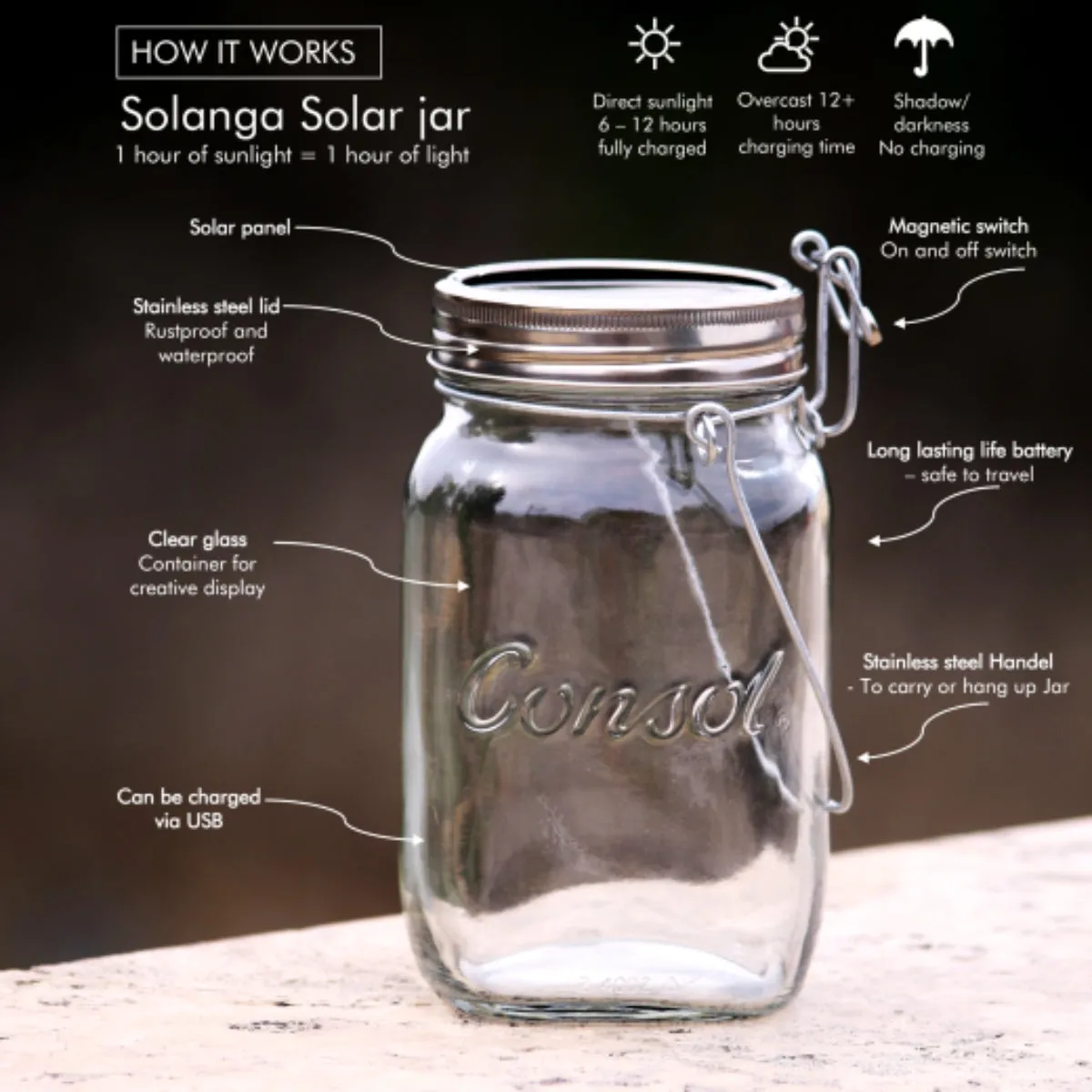

Operation
- Swivel rectangular wire clip with small circular magnet so that magnet rests on the solar panel.
- With one hand, hold wire mechanism by circular hooks of handle.
- Use other hand to rotate bottle until white indicator dot on panel lines up with magnet.
- Then flip magnet to turn light off and on.
Battery Protection Feature
- The light will turn off automatically when battery low voltage is reached. This protects the battery and thus extends battery life.
Power Output
- Equivalent to 1/2 candle-power on spread, but far brighter as LEDs are directional light sources.
- 120mW power output
- 15Lm light output
- Efficiency >80%
Charging
- 1 hour direct sunlight = 1 hour of light
- Average 6-9 hours of run time per day
- ± 2 hours of run time from charge on rainy, overcast day
